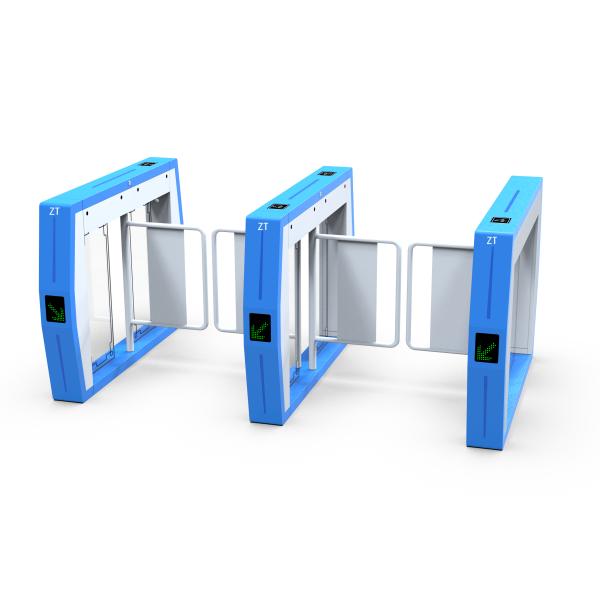

    0.8s Fast Passage Swing Turnstile Gate with 99.9% Accurate Recognition and 360° Safety Protection

    Ask Lasest Price
    Brand Name : zento
    Model Number : ZT-610
    Certification : CE, ROHS, ISO9001
    Price : Contact us to get big discount
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 400 unit per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    0.8s Fast Passage Swing Turnstile Gate with 99.9% Accurate Recognition and 360° Safety Protection

    Swing Barrier Turnstiles: The Ultimate Solution for Modern Access Control

    Elevate the security and aesthetics of your building with our swing barrier turnstiles. Combining cutting-edge technology with a sleek design, these gates provide a modern, reliable, and user-friendly solution for managing pedestrian traffic in high-end environments.

    Why Choose Zento Swing Gate Turnstile?


    Zento swing gate turnstiles are engineered to address the specific needs of busy, public spaces. They operate with a smooth, swinging motion, using panels that retract into the chassis to create a wide, open lane for passage.


    Exceptional Accessibility: A key advantage of our pedestrian swing turnstile gates is their wide passage width, which makes them a perfect ADA compliant turnstile solution. They effortlessly accommodate wheelchairs, strollers, large luggage, and deliveries, ensuring a smooth flow of all foot traffic.


    Elegant & Modern Design: The refined, minimalist design, often featuring clear glass or acrylic panels, complements any contemporary architectural style. They provide a high-tech and welcoming first impression for your guests and employees.


    High-Volume Throughput: Despite their focus on accessibility, these motorized turnstile gates are built for speed and efficiency. They are ideal for high-traffic areas like corporate lobbies, airports, and university campuses, where quick, reliable entry is crucial.


    Robust Security Features: Our security swing turnstile gates are equipped with advanced sensors to prevent tailgating and unauthorized entry. When integrated with your existing access control system—such as card readers, biometrics, or QR code scanners—they provide a secure and monitored access point.

    Product Specifications
    Product NameAccess Control Face Recognition Swing Turnstile Gate
    Response Time0.2-0.8s
    Standard Size1200×160×980mm
    Throughput Capacity30-45 persons/minute
    Color OptionsCustomizable
    Key Features
    • 0.8s Fast Passage: High-torque motor enables throughput ≥35 persons/min
    • Military-Grade Durability: 304 stainless steel + 8mm tempered glass with impact resistance ≥1000J
    • 99.9% Accurate Recognition: Supports Face ID/QR Code/RFID Card/NFC multi-authentication
    • 360° Safety Protection: Dual infrared anti-pinch + anti-tailgating alarm system
    • Extreme Environment Adaptability: IP65 waterproof rating, operates reliably from -30℃ to 70℃
    ZT-994 Swing Turnstile Gate in operational environment
    Technical Overview
    Mechanism

    Motorized swing turnstile gates utilize a control system with infrared sensors to detect presence and authorize entry. Upon valid credential verification (card, facial scan, or biometric data), the barrier swings open and automatically closes after passage confirmation.

    Construction

    Swing barriers are constructed from durable materials including stainless steel, plexiglass, or tempered glass, selected based on security requirements and aesthetic preferences. Available in both waist-high and full-height configurations for varying security levels.

    Operation & Accessibility

    Configurable for one-way or bi-directional access with self-closing or motorized operation. Features emergency breakaway functionality for power failures. ADA-compliant design accommodates wheelchairs, walkers, and luggage with adjustable passage width (550-900mm).

    Technical Parameters
    CategoryParameterSpecification
    Basic InformationModel NumberZT-610
    Product NameSwing Turnstile Barrier
    BrandZento
    Material & StructureMain MaterialStainless steel 304/316
    Surface TreatmentBrushed/Polished
    Frame Thickness1.5mm
    Barrier Arm MaterialAluminum alloy/Stainless steel
    DimensionsDevice Size (L×W×H)1200×160×980mm
    Passage Width550-900mm (adjustable)
    Barrier Arm Length250-450mm
    PerformanceOpening/Closing Time0.2 seconds
    Operating Speed30-45 passages/minute
    Temperature Range-30°C to +90°C
    Humidity Range5% - 95% (non-condensing)
    Technical diagram of ZT-994 swing turnstile components
    Advanced Functionality
    • Self-diagnostic system with fault detection and maintenance alerts
    • Programmable operation modes via integrated control panel
    • Anti-collision mechanism with automatic motor cutoff
    • Synchronized swing arm adjustment for dual-arm configurations
    • Automatic reset function with configurable timeout (default 5 seconds)
    • Fail-safe power-off open mode for emergency egress
    • Multi-protocol support for various card readers and access control systems
    • Bi-directional operation with configurable entry/exit controls
    • Remote management capability via network connection
    Optional Features
    • Audible/visual alarm systems for security violations
    • People counting functionality
    • Enhanced infrared detection systems
    • Custom chassis and arm length configurations
    ZT-994 Swing Turnstile Gate installation example
